| -->> Porcelain Bushing |
|
|
|
|

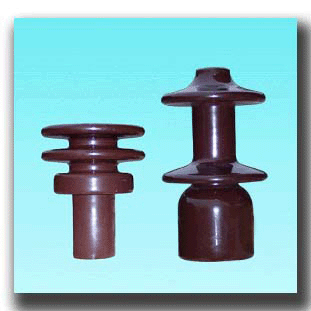

KEIMC manufacturers different kinds
of porcelain bushings for transformer.The porcelain
bushings are manufactured and tested to the requirements
of International standards such as DIN,ANSI,BS,EN
etc. Standard color is sky gray, with chocolate
or white available upon request. |
| NOTE |
1) |
For the best view and print-out quality, download
(or open-file) the catalog pages in "Portable
Document Format" (PDF) |
Click  |
|
2) |
For the best larger view of the products
picture, |
Click |
|
DIN42530 L.V PORCELAIN BUSHING
| Cat No |
DIN42530 |
Rate Voltage(KV) |
Rate Current(A) |
Drawing |
530250A |
Dt1/250A |
1 |
250 |
|
530250B |
Dt1/250B |
1 |
250 |
|
530630A |
Dt1/630A |
1 |
630 |
|
530630B |
Dt1/630B |
1 |
630 |
|
5301000A |
Dt1/1000A |
1 |
1000 |
|
5301000B |
Dt1/1000B |
1 |
1000 |
|
5302000A |
Dt1/2000A |
1 |
2000 |
|
5302000B |
Dt1/2000B |
1 |
2000 |
|
5303150A |
Dt1/3150A |
1 |
3150 |
|
5303150B |
Dt1/3150B |
1 |
3150 |
|
DIN42539 L.V
PORCELAIN BUSHING
| Cat No |
DIN42539 |
Rate Voltage(KV) |
Rate Current(A) |
Drawing |
539250A |
Dt3/250A |
3 |
250 |
|
539250B |
Dt3/250B |
3 |
250 |
|
539630A |
Dt3/630A |
3 |
630 |
|
539630B |
Dt3/630B |
3 |
630 |
|
5391000A |
Dt3/1000A |
3 |
1000 |
|
5391000B |
Dt3/1000B |
3 |
1000 |
|
5392000A |
Dt3/2000A |
3 |
2000 |
|
5392000B |
Dt3/2000B |
3 |
2000 |
|
5393150A |
Dt3/3150A |
3 |
3150 |
|
5393150B |
Dt3/3150B |
3 |
3150 |
|
DIN42531
DIN42532 H.V
PORCELAIN BUSHING
| Cat No |
DIN42531 |
Rate Voltage(KV) |
Rate Current(A) |
Drawing |
531101 |
10Ni250 |
10 |
250 |
|
531102 |
10NF250 |
10 |
250 |
|
531201 |
20Ni250 |
20 |
250 |
|
531202 |
20NF250 |
20 |
250 |
|
531301 |
30NF250 |
30 |
250 |
|
531302 |
33NF250 CD1320 |
30 |
250 |
|
| Cat No |
DIN42532 |
Rate
Voltage(KV) |
Rate
Current(A) |
Drawing |
532103 |
10NF630 |
10 |
630 |
|
532203 |
20NF630 |
20 |
630 |
|
532303 |
30NF630 |
30 |
630 |
|
DIN42533 H.V PORCELAIN BUSHING
| Cat No |
DIN42533 |
Rate Voltage(KV) |
Rate Current(A) |
Drawing |
533100 |
10NF1000 |
10 |
1000 |
|
533150 |
10NF3150 |
10 |
3150 |
|
533105 |
10NF4500 |
10 |
4500 |
|
533200 |
20NF1000 |
20 |
1000 |
|
533250 |
20NF3150 |
20 |
3150 |
|
533205 |
20NF4500 |
20 |
4500 |
|
533300 |
30NF1000 |
30 |
1000 |
|
533350 |
30NF3150 |
30 |
3150 |
|
533305 |
30NF4500 |
30 |
4500 |
|
|
|
Top

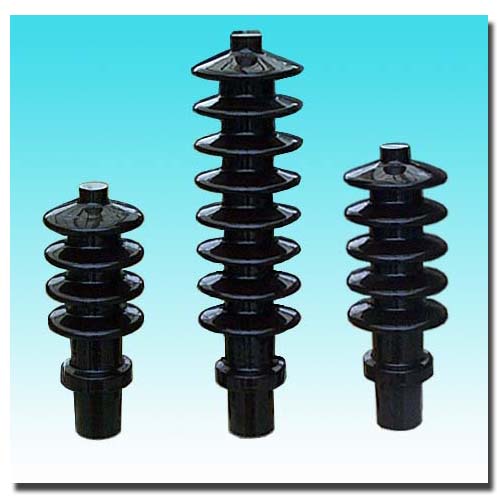

EN50180 H.V PORCELAIN BUSHING
| Cat No |
EN50180 |
Rate Voltage(KV) |
Rate Current(A) |
Drawing |
501801 |
Type 1 |
12 |
250 |
|
501802 |
Type 2 |
12/24 |
250 |
|
501803 |
Type 3 |
24/36 |
250 |
|
501804 |
Type 4 |
24/36 |
250 |
|
| 501805 |
Type 5 |
24/36 |
250 |
|
Top

ANSI Thread Porcelain Bushing
| Cat No |
Rate
Voltage(KV) |
Creepage
Distance(mm) |
Picture |
| 5300004 |
1.2 |
|
 |
| 5300042 |
18 |
451 |
|
| 5300017 |
15 |
280 |
|
| 5300016 |
15 |
230 |
|
| 5300018 |
1.2 |
|
|
Top

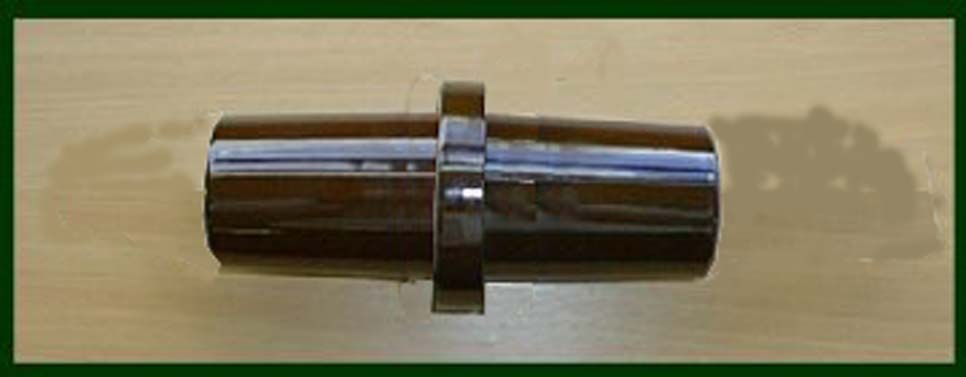

BS2562 PORCELAIN BUSHING
| Cat No |
BS2562 |
Rate Voltage(KV) |
Rate Current(A) |
Drawing |
5325621 |
CB1M |
1.1/3.6/12 |
|
|
5325622 |
CB2M |
1.1/3.6/12 |
|
|
5325623 |
CB3M |
1.1/3.6/12 |
|
|
5325626 |
CB6M |
1.1/3.6/12 |
|
|
| 5325627 |
CB7M |
1.1/3.6/12 |
|
|
Top

PORCELAIN BUSHING FOR SOUTH AFRICA
MARKET
|
|
Top

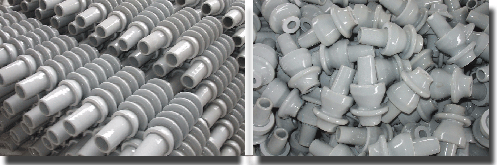

Porcelain Bushing
for Australia
|
|
|
|
Top

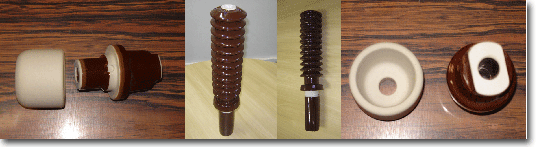

PORCELAIN
BUSHING FOR BRAZIL
|
| Cat No |
Glaze
Color |
Rate Voltage(KV) |
Rate Current(A) |
Drawing |
|
05-15160 |
Brown |
15KV |
160A |
|
|
05-25160 |
Brown |
25.8KV |
160A |
|
|
05-35160 |
Brown |
34.5KV |
160A |
|
|
05-13160800 |
Brown |
1.3KV |
160-800A |
|
| |
|
|
|
|
|
|
BACK
|
